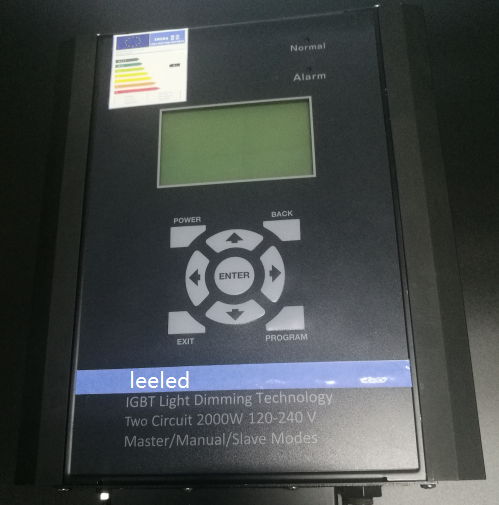

Advanced technology IGBT controller/dimmer for LED Lighting
Backlit ultra bright three inch display
Fully automatic control or manual front panel options
Precise, consistent, incremental dimming down to 1%。
Operates seamlessly between 110 volts and 240 volts.There are no changes required inside the box or switches to be manipulated.
Simple install; connections on outside of Dimmer using included connector enclosure. Simple mounting system with +/- 10 degree tilt ensures easy programming.
Surge; Overvoltage, Short Circuit, Overheat Protection
Dual 10 amp, 1000 Watt outputs can run independent Lightinging schedules
Program up to 999 days in advance and divide each day into as many as 99 unique lighting periods.
Quick & simple programming thanks to powerful Previous Day Replication option. Bypass tedious day to day programming unless changes are required.
Optional slave control with standard 0-10V bus
Programmable transition time for sunrise/sunset dim option
LED Controllers/Dimmers for Enhanced Productivity and Protection
Our new Leeled Reverse Phase IGBT Dimmer is about important choices that impact your Lighting Plan, Quality and Performance. Many competitors sell SCR (Silicon Controlled Rectifier) based dimmers or IGBT forward Phase dimmers that act like TRIAC dimmers.Leeled’s Output Voltage Control Dimming Technology creates a quieter electrical atmosphere in the poultry house helping to prevent electromagnetic interference with and by other electrical systems in the house. Inversely, the Leeled Dimmer/Controller power filtration technology prevents equipment in the house from affecting the other electrical current and voltage being provided to the light bulbs. This prevents fluctuation in current and voltage delivered to the bulbs which, if not controlled, can cause flickering and bulbs shutting down at low dimming/voltage levels.Tests clearly indicate that our competitors’ Forward Phase Dimmer technology abruptly “turns on” at some point within the half cycle of the input voltage waveform. This sudden surge of voltage input causes stress on ip67 LED bulbs and issues with deep dimming of LED's Leeled’s Reverse Phase output voltage IGBT Dimming Technology eliminates abrupt voltage and current transitions and provides smooth “ons" and "offs of voltage and current during the dimming cycle. The smart Leeled Reverse Phase IGBT Dimmer operates at up to a 1,000 micro-second transition time and can sense and automatically respond to changes it detects in incoming power, load size, load type, load condition and temperature. This ultra-fast transition time enables the LifeLamp dimmer to dim inductive loads like LED bulbs down to extremely low dimming levels without flickeringVoltage drop across Leeled’s 1000 micro-second rise time Reverse Phase IGBT Dimmer is less than 2.5 volts! Because the voltage drop through the Leeled Reverse Phase IGBT Dimmer is minimal, Leeled is prolonged, brightness is maintained through the life of the bulb and energy efficiency is maximized. Voltage drop across a 1000 microsecond rise time forward phase or TRIAC dimmer exceeds 7 volts resulting in these forward phase or TRIAC dimmers producing less light and more waste heat.
